Pioneer VSX-534: Affordable Atmos & DTS:X That Punches Above Its Weight

Home theater buyers often face a familiar dilemma: invest in a high-end receiver with premium features, or settle for an affordable unit that cuts corners.

That’s where the Pioneer VSX-534 steps in. Released in 2019, this 5.2-channel AV receiver sets out to offer the best of both worlds—immersive audio formats like Dolby Atmos and DTS:X, all at a price that won’t empty your wallet.

Over the past few weeks, I tested the VSX-534 across different setups. What stood out wasn’t just its power or versatility—it was how much surround sound performance Pioneer managed to pack into such a compact, budget-friendly unit.

One Crutchfield reviewer put it simply: “Very satisfied with the crisp sharp tones.” But does it truly deliver where it counts? Let’s take a closer look.

The VSX-534 may sit in the budget category, but its features suggest otherwise.

• Power Output: 80W per channel (8Ω, 2-channel driven), with peaks up to 150W at 6Ω—enough to fill medium-sized rooms with ease

• Audio Formats: Supports Dolby Atmos and DTS:X, plus upmixing via DTS Neural:X, DTS Virtual:X, Dolby Surround, and Atmos Height Virtualizer

• Video Support: Offers 4 HDMI 2.0 inputs and 1 output with support for 4K/60Hz passthrough, HDR10, Dolby Vision, HLG, and BT.2020

• DAC Quality: Features a 32-bit/384kHz AKM DAC (AK4438) for detailed, low-distortion sound

• Room Calibration: Includes MCACC auto-calibration that adjusts levels and delays based on your room’s acoustics

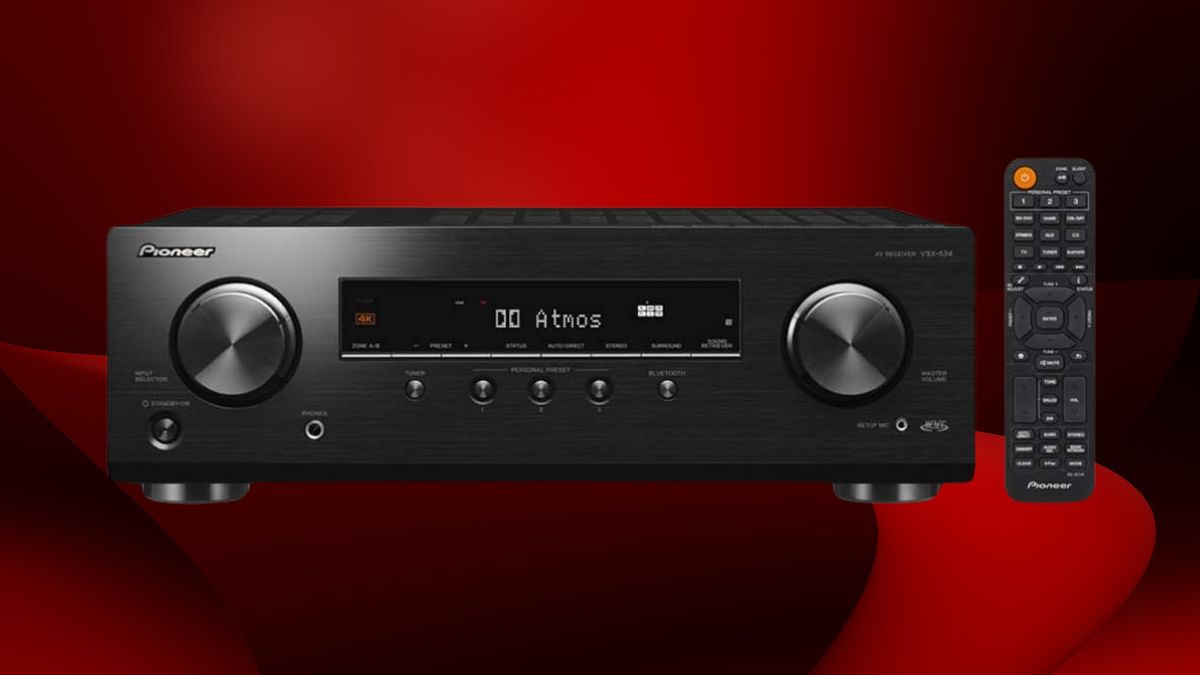

From the outside, the VSX-534 keeps things simple—but purposeful.

• Slim Profile: 12% thinner than previous models, making it ideal for small media cabinets

• Front Panel Layout: Clean and accessible, with a USB-A port, headphone jack, and mic input for calibration

• Speaker Terminals: Combines binding posts and spring clips for a balance between stability and cost

• Status Indicators: Dedicated lights for 4K and Bluetooth confirm active features at a glance

• Quick Presets: One-touch Personal Preset button allows switching between three saved audio profiles

This receiver proves that good sound doesn’t have to be expensive.

• Immersive Effects: Even without full Atmos speakers, the virtualization features create a spacious, convincing 3D soundfield

• Dialogue Clarity: Dialogue Enhancement isolates voices for cleaner, clearer conversations in movies and shows

• Music Playback: Delivers a warm, balanced tone across genres, with only slight strain on compressed files at higher volumes

• Bass Alignment: Phase Control keeps low-end frequencies in sync with mids and highs, improving punch and timing

• Compressed Audio Recovery: Advanced Sound Retriever revives clarity and detail from MP3s and streams

Although the VSX-534 skips some extras, it nails the essentials.

• Bluetooth Streaming: Bluetooth 4.2 with SBC and AAC support for casual wireless listening

• Video Upscaling: Upscales 1080p sources to near-4K quality and supports BT.2020 for HDR

• High-Res Audio: Handles playback up to 192kHz/24-bit for better-than-CD clarity

• Smart Feature Trade-Off: No Wi-Fi, streaming apps, or eARC—but these omissions help keep the focus on performance

• Easy Setup: MCACC system walks users through speaker calibration in minutes, making it beginner-friendly

Once you set it up, the VSX-534 reveals its true strength: delivering more than expected for the price.

• Cost vs. Capability: Dolby Atmos and DTS:X in a receiver under $300 is still rare—this unit makes immersive sound attainable

• Best For: Users with smart TVs or external streaming boxes who don’t need onboard apps

• Why It Stands Out: Slim profile, high-end DAC, and flexible audio features outshine similarly priced models

• Longevity: Lacks 8K, but 4K support via HDMI 2.0 remains sufficient for most users’ needs

• Customer Feedback: Owners consistently praise the easy setup and surprisingly rich audio

Absolutely. The VSX-534 skips flashier features and zeroes in on what matters: performance.

From Atmos soundscapes to balanced music playback, it delivers more than expected for the price. If you’re building a home theater on a budget and already have a streaming setup, this receiver offers exceptional value.

Immersive sound doesn’t have to cost a fortune—and the VSX-534 proves it.
